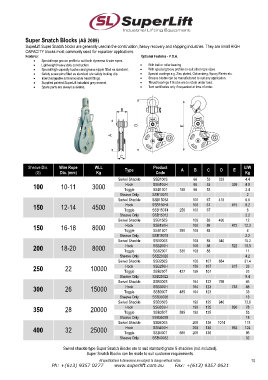

Super Snatch Blocks (AS 2089) SuperLift Super Snatch blocks are generally used in the construction, heavy recovery and shipping industries. They are small HIGH CAPACITY blocks most commonly used for equalizer applications. Features: Optional Features - P.O.A.  Special rope groove profile to suit both dyneema & wire ropes  Lightweight heavy-duty construction.  With ball or roller bearing  Special high capacity bushes and grease nipple fitted as standard.  With special groove profiles to suit other rope sizes  Safety screw pins fitted as standard c/w safety locking clip.  Special coatings e.g. Zinc plated, Galvanizing, Epoxy Paints etc.  Interchangeable and removable head fittings.  Sheave blocks can be manufactured to suit any application.  Supplied painted SuperLift Industrial grey enamel.  Thrust bearings if blocks are to rotate under load.  Spare parts are always available.  Test certificates only if requested at time of order. Sheave Dia. Wire Rope WLL Type Product A B C D E U/W (G) Dia. (mm) Kg Code Kg Swivel Shackle SSB100S 66 53 333 4.4 Hook 100 10-11 3000 Toggle SSB100H 188 66 53 326 4.9 53 SSB100T 3.4 66 Sheave Only SSB10010 2 Swivel Shackle SSB150S4 100 67 418 8.8 Hook 150 12-14 4500 Toggle SSB150H4 256 100 67 415 9.2 SSB150T4 100 6 67 Sheave Only SSB15012 2.2 Swivel Shackle SSB150S 108 88 490 12 Hook 150 16-18 8000 Toggle SSB150H 280 108 88 472 12.3 8 88 108 SSB150T Sheave Only SSB15018 3.2 Swivel Shackle SSB200S 108 88 540 15.2 Hook 200 18-20 8000 Toggle SSB200H 330 108 88 522 15.5 108 88 11 SSB200T Sheave Only SSB20020 4.2 Swivel Shackle SSB250S 156 107 684 31.4 Hook 250 22 10000 Toggle SSB250H 427 156 107 615 33 SSB250T 107 156 25 Sheave Only SSB25022 9.4 Swivel Shackle SSB300S 164 123 798 45 Hook 300 26 15000 Toggle SSB300H 485 164 123 748 48 123 164 33 SSB300T Sheave Only SSB30026 13 Swivel Shackle SSB350S 190 125 946 73.6 Hook 350 28 20000 Toggle SSB350H 585 190 125 890 78 53 SSB350T 125 190 Sheave Only SSB35028 18 Swivel Shackle SSB400S 208 136 1014 115 Hook 400 32 25000 Toggle SSB400H 660 208 136 953 124 96 SSB400T 208 136 Sheave Only SSB40032 32 Swivel shackle type Super Snatch Blocks are to suit standard grade S shackles (not included). Super Snatch Blocks can be made to suit customer requirements. All specifications & dimensions are subject to change without notice. 10 Ph: +(613) 9357 0277 www.superlift.com.au Fax: +(613) 9357 0621
