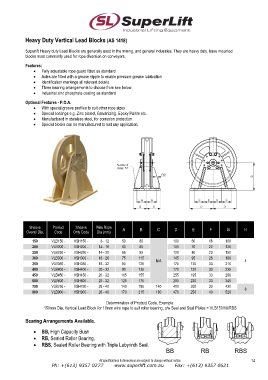

Heavy Duty Vertical Lead Blocks (AS 1418) Superlift Heavy duty Lead Blocks are generally used in the mining, and general industries. They are heavy duty, base mounted blocks most commonly used for rope diversion on conveyors. Features:  Fully adjustable rope guard fitted as standard.  Axles are fitted with a grease nipple to enable pressure grease lubrication  Identification markings all relevant details  Three bearing arrangements to choose from see below.  Industrial zinc phosphate coating as standard Optional Features - P.O.A.  With special groove profiles to suit other rope sizes  Special coatings e.g. Zinc plated, Galvanizing, Epoxy Paints etc.  Manufactured in stainless steel, for corrosion protection  Special blocks can be manufactured to suit any application. Sheave Product Sheave Wire Rope Overall Dia. Code Only Code Dia (mm) A B C D E F G H 150 VLB150 - VSH150 - 8 - 12 50 80 100 60 18 100 200 VLB200 - VSH200 - 14 - 16 60 85 105 70 22 125 250 VLB250 - VSH250 - 14 - 20 65 95 120 80 23 150 300 VLB300 - VSH300 - 16 - 26 75 115 N/A 145 95 26 180 4 350 VLB350 - VSH350 - 16 - 32 90 125 170 120 33 216 400 VLB400 - VSH400 - 20 - 32 90 125 170 120 33 235 450 VLB450 - VSH450 - 20 - 32 115 155 255 195 33 260 600 VLB600 - VSH600 - 20 - 32 125 170 290 230 33 345 750 VLB750 - VSH750 - 26 - 40 140 185 140 400 200 33 430 8 900 VLB900 - VSH900 - 26 - 40 170 215 160 470 250 40 520 Determination of Product Code, Example: 150mm Dia. Vertical Lead Block for 10mm wire rope to suit roller bearing, c/w Seal and Seal Plates = VLB150/10/RBS Bearing Arrangements Available.  BB, High Capacity Bush  RB, Sealed Roller Bearing.  RBS, Sealed Roller Bearing with Triple Labyrinth Seal. All specifications & dimensions are subject to change without notice. 14 Ph: +(613) 9357 0277 www.superlift.com.au Fax: +(613) 9357 0621
