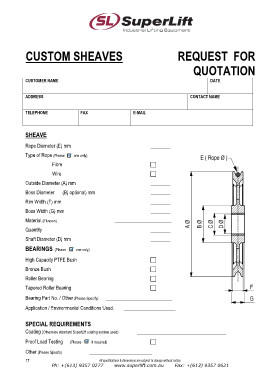

CUSTOM SHEAVES REQUEST FOR QUOTATION CUSTOMER NAME DATE ADDRESS CONTACT NAME TELEPHONE FAX E-MAIL SHEAVE Rope Diameter (E) mm ________ Type of Rope (Please one only) Fibre  Wire  Outside Diameter (A) mm ________ Boss Diameter (B) optional) mm ________ Rim Width (F) mm ________ Boss Width (G) mm ________ Material (if known) _______________________ Quantity ________ Shaft Diameter (D) mm ________ BEARINGS (Please one only) High Capacity PTFE Bush  Bronze Bush  Roller Bearing  Tapered Roller Bearing  Bearing Part No. / Other (Please Specify) _______________________ Application / Environmental Conditions Used. _____________________ SPECIAL REQUIREMENTS Coating (Otherwise standard SuperLift coating system used) _______________________________ Proof Load Testing (Please i if required)  Other (Please Specify) ______________________ 17 All specifications & dimensions are subject to change without notice. Ph: +(613) 9357 0277 www.superlift.com.au Fax: +(613) 9357 0621
