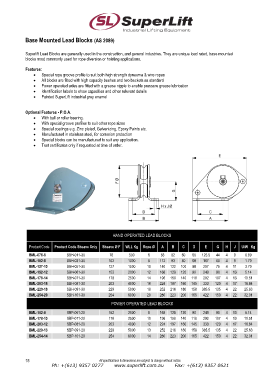

Base Mounted Lead Blocks (AS 2089) Superlift Lead Blocks are generally used in the construction, and general industries. They are unique load rated, base mounted blocks most commonly used for rope diversion or hoisting applications. Features:  Special rope groove profile to suit both high strength dyneema & wire ropes  All blocks are fitted with high capacity bushes and two beckets as standard  Power operated axles are fitted with a grease nipple to enable pressure grease lubrication  Identification labels to show capacities and other relevant details  Painted SuperLift industrial grey enamel Optional Features - P.O.A.  With ball or roller bearing.  With special groove profiles to suit other rope sizes  Special coatings e.g. Zinc plated, Galvanizing, Epoxy Paints etc.  Manufactured in stainless steel, for corrosion protection  Special blocks can be manufactured to suit any application.  Test certificates only if requested at time of order. HAND OPERATED LEAD BLOCKS Product Code Product Code Sheave Only Sheave Ø F WLL Kg Rope Ø A B C D E G H J U/W Kg BML-076-6 SBH-011-30 76 500 6 83 82 60 60 125.5 44 4 9 0.69 BML-102-8 SBH-031-30 102 1000 8 112 93 80 68 167 60 4 9 1.70 BML-127-10 SBH-051-30 127 1500 10 140 122 100 88 207 75 4 11 3.70 BML-152-12 SBH-061-30 152 2000 12 168 129 120 90 249 90 4 13 5.14 BML-178-14 SBH-071-30 178 2500 14 196 150 140 110 292 107 4 13 10.51 BML-203-16 SBH-081-30 203 4000 16 224 197 160 145 333 120 4 17 16.84 BML-229-18 SBH-091-30 229 5000 18 252 216 180 158 385.5 135 4 22 25.63 BML-254-20 SBH-101-30 254 6000 20 280 223 200 165 422 150 4 22 32.01 POWER OPERATED LEAD BLOCKS BML-152-8 SBP-061-20 152 2000 8 168 129 120 90 249 90 4 13 5.14 BML-178-10 SBP-071-20 178 2500 10 196 150 140 110 292 107 4 13 10.51 BML-203-12 SBP-081-20 203 4000 12 224 197 160 145 333 120 4 17 16.84 BML-229-13 SBP-091-20 229 5000 13 252 216 180 158 385.5 135 4 22 25.63 BML-254-14 SBP-101-20 254 6000 14 280 223 200 165 422 150 4 22 32.01 15 All specifications & dimensions are subject to change without notice. Ph: +(613) 9357 0277 www.superlift.com.au Fax: +(613) 9357 0621
