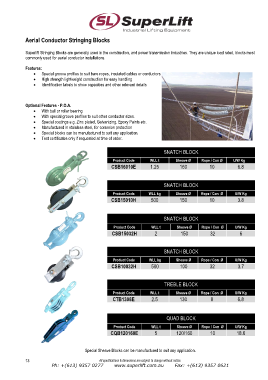

Page 16 - SuperLift-DataBook-Sheave-Blocks-SBEDN9

Aerial Conductor Stringing Blocks Superlift Stringing Blocks are generally used in the construction, and power transmission industries. They are unique load rated, blocks most commonly used for aerial conductor installations. Features:  Special groove profiles to suit bare ropes, insulated cables or conductors  High strength lightweight construction for easy handling  Identification labels to show capacities and other relevant details Optional Features - P.O.A.  With ball or roller bearing  With special groove profiles to suit other conductor sizes.  Special coatings e.g. Zinc plated, Galvanizing, Epoxy Paints etc.  Manufactured in stainless steel, for corrosion protection  Special blocks can be manufactured to suit any application.  Test certificates only if requested at time of order. SNATCH BLOCK Product Code WLL t Sheave Ø Rope / Con Ø U/W Kg CSB16010E 1.25 160 10 6.8 SNATCH BLOCK Product Code WLL kg Sheave Ø Rope / Con Ø U/W Kg CSB15010H 500 150 10 3.8 SNATCH BLOCK Product Code WLL t Sheave Ø Rope / Con Ø U/W Kg CSB15032H 2 150 32 6 SNATCH BLOCK Product Code WLL kg Sheave Ø Rope / Con Ø U/W Kg CSB10032H 500 100 32 3.7 TREBLE BLOCK Product Code WLL t Sheave Ø Rope / Con Ø U/W Kg CTB1308E 2.5 130 8 6.8 QUAD BLOCK Product Code WLL t Sheave Ø Rope / Con Ø U/W Kg CQB120160E 5 120/160 10 18.6 EE10E Special Sheave Blocks can be manufactured to suit any application. 13 All specifications & dimensions are subject to change without notice. Ph: +(613) 9357 0277 www.superlift.com.au Fax: +(613) 9357 0621
